Linear Regression with Example

Simple Linear Regression and Multiple Linear Regression explanation and prediction


Category: Machine Learning Tags: Python, Python 3, Engineering Mathematics

Linear Regression Code Files

Simple Linear Regression

    Simple linear regression is relationship between two variables x, y where a function y = a + b.x can be determined to predict values of y on predictor x.

x = a + b.x

a = intercept, b = slope of line

Suppose we have given data of employee’s experience and their salary:

Experience (Years)

Salary (10000 $)

2

3

3

3

3.5

3.5

3.5

4

4

4

4.5

4.5

5

6

6

6

7

8

7.5

8



We know here values of x and corresponding y, only we need to find a and b to use the above formula. Below given formula to find a and b:

Intercept and Slope Formula









Where Sy, Sx is Standard deviation of x and y. r is Pearson coefficient. ͞x, ͞y is mean of x and y.

We have already learned about Standard deviation, Mean and Pearson coefficient in previous articles, below are formulas for Mean, Standard deviation and Pearson coefficient:

Formula for Average or Mean







Formula of Standard Deviation







Pearson Coefficient Formula









Let’s dump data in a file called Experiencepay.txt

2,3

3,3

3.5,3.5

3.5,4

4,4

4.5,4.5

5,6

6,6

7,8

7.5,8

Create a file called simpleLinearRegression.py and write method to read above file data

def loadData(filename):
    Experience = []
    Pay = []
    with open(filename) as file:
        rows = file.readlines()
        for row in rows:
            exp, pay = row.strip().split(",")
            Experience.append(float(exp))
            Pay.append(float(pay))
    return Experience, Pay

Above Experience, Pay is X and Y. Pay is proportional to Experience, Experience increases Pay increases. You can plot this data using code:

here = os.path.dirname(os.path.abspath(__file__))
filename = os.path.join(here, 'Experiencepay.txt')
#experience, pay will be ploted on x, y axis respectively
Experience, Pay = loadData(filename)
#plotting scatter plot of actual data
plt.scatter(Experience, Pay, color='red')
plt.xlabel("Experience (Years)")
plt.ylabel("Annual Salary (10000s)")
plt.show()

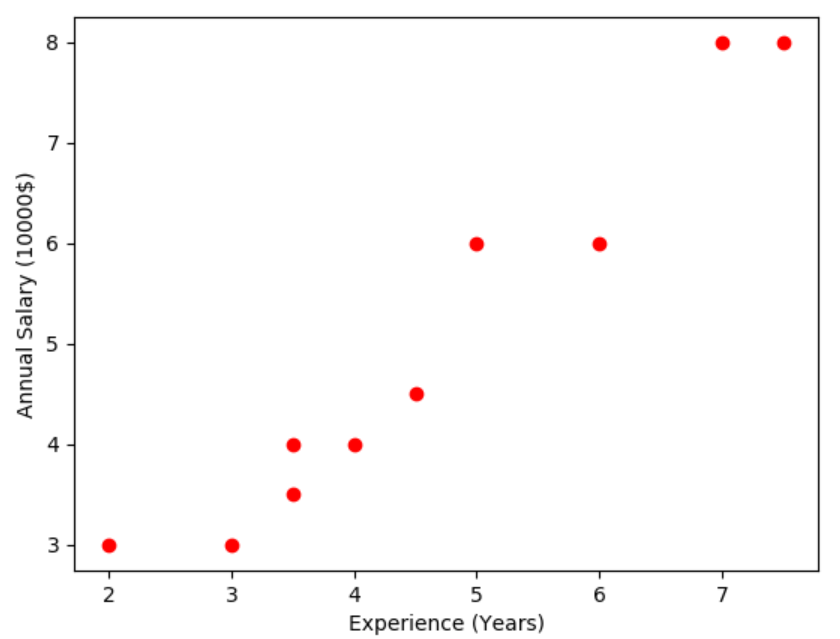

Output

Scatter Plot



Let’s write the method to find a and b using formulas discussed before

def calculateLinearRegrassionCoffecients(x, y):
    a = 0
    b = 0
    r = 0
    n = len(x)
    #∑x
    sum_x = sum([ele for ele in x])
    #∑y
    sum_y = sum([ele for ele in y])
    avg_x = sum_x/n
    avg_y = sum_y/n
    #∑x2
    sum_x_square = sum([ele**2 for ele in x])
    #∑y2
    sum_y_square = sum([ele**2 for ele in y])
    #∑xy
    sum_product_x_y = sum([x[i]*y[i] for i in range(n)])
    #pearson coefficient
    r = (sum_product_x_y - sum_x*sum_y/n)
    r /= math.sqrt((sum_x_square - pow(sum_x, 2)/n)*(sum_y_square - pow(sum_y, 2)/n))
    #standard deviation
    S_x = math.sqrt(sum([(avg_x - ele)**2 for ele in x])/(n-1))
    S_y = math.sqrt(sum([(avg_y - ele)**2 for ele in y])/(n-1))
    #slope
    b = r*(S_y/S_x)
    #intercept
    a = avg_y - b*avg_x
    return a, b

Now we have value of a and b, and now  can write a method to predict y:

def predict(x, a, b):
    # y = a + b*x
    return (a + b*x)

Now let’s plot the regression line

here = os.path.dirname(os.path.abspath(__file__))
filename = os.path.join(here, 'Experiencepay.txt')
#experience, pay will be plotted on x, y axis respectively
Experience, Pay = loadData(filename)
#calculating intercept and slope
a, b = calculateLinearRegrassionCoffecients(Experience, Pay)
#prediction line y values for x
y_predict = [predict(x, a, b) for x in Experience]
#plotting scatter plot of actual data
plt.scatter(Experience, Pay, color='red')
#plotting regression line
plt.plot(Experience, y_predict)
plt.xlabel("Experience (Years)")
plt.ylabel("Annual Salary (10000$)")
plt.show()

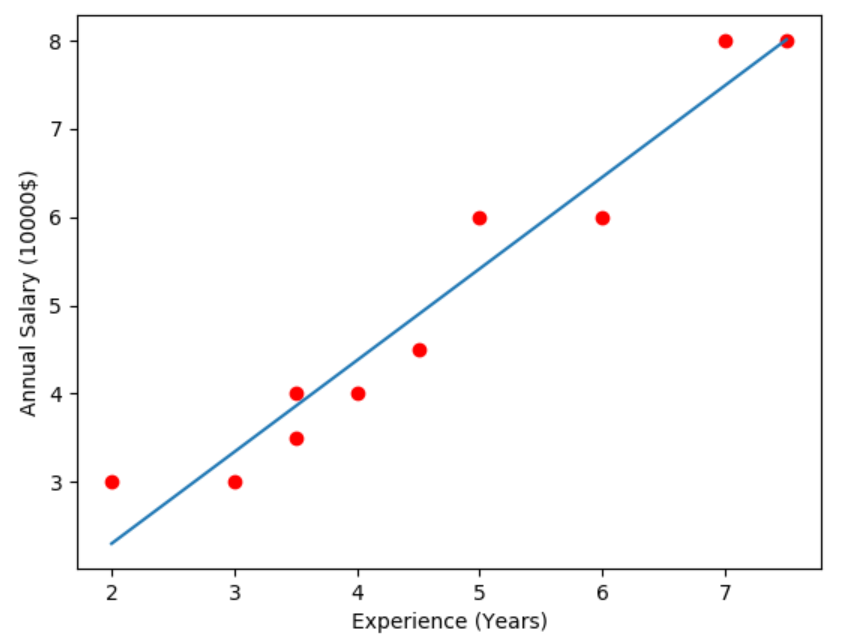

Output
Simple Linear Regression



We can predict salary of a new employee

here = os.path.dirname(os.path.abspath(__file__))
filename = os.path.join(here, 'Experiencepay.txt')
#experience, pay will be plotted on x, y axis respectively
Experience, Pay = loadData(filename)
#calculating intercept and slope
a, b = calculateLinearRegrassionCoffecients(Experience, Pay)
x = 12
#prediction line y values for x
y = predict(x, a, b)
print("Salary of {} years experienced person should be {}".format(x, y))

Output

Salary of 12 years experienced person should be 12.68661971830986

Multiple Linear Regression

    As we seen in simple linear regression there was only one predictor x, in other hand multiple linear regression has more than 1 predictor x1,x2,x3… and we may write formula:

y = a + b1.x1 + b2.x2

Let’s add one more feature called skill level in our data, create file ExpLevelPay.txt

2,2,3

3,3,4.5

3.5,3,4

3.5,5,8

4,4,8

4.5,2,5

5,4,9

6,2,7

7,2,8

7.5,5,9

Create a file called multipleLinearRegression.py and paste below code

import os
import numpy as np
from sklearn.linear_model import LinearRegression

def loadData(filename):
    X = []
    Y = []
    with open(filename) as file:
        rows = file.readlines()
        for row in rows:
            exp,level,pay = row.strip().split(",")
            X.append([float(exp),float(level)])
            Y.append(float(pay))
    return X, Y

here = os.path.dirname(os.path.abspath(__file__))
filename = os.path.join(here, 'ExpLevelPay.txt')
#x is (exp,level) and y is pay
X, Y = loadData(filename)
#initializing linear regression
mulReg = LinearRegression()
#training
model = mulReg.fit(X, Y)


#predicting of guy 5 years exp and skill level 5
X1 = [[5,4]]
Y1 = model.predict(X1)
print("Salary of {} years experienced and {} skill level person should be {}".format(X1[0][0], X1[0][1], Y1))

Output

Salary of 5 years experienced and 4 skill level person should be [7.64079932]

You can see above code we used sci-kit here to predict salary using multiple linear regression. We can use this LinearRegression module to train and predict.
