How to make a digital clock using Arduino

Implementation of digital clock using Arduino, MAX7219 dot matrix display, DS1302 RTC real time clock, DHT11 humidity and temperature sensor and alarm active buzzer

Category: Arduino Tags: Arduino nano, MAX7219 4in1 Display, DHT11, DS1302 RTC, Active buzzer

Digital Clock Code Files

    In this article we will learn how to make a digital clock using Arduino nano with below features:

  1. Display temperature & humidity
  2. Display date and day
  3. Can set alarm
  4. Can set time, day and date

Prerequisites:

  1. Arduino nano with cable
  2. DS1302 RTC
  3. MAX7219 4in1 Display
  4. DHT11 Temperature and Humidity sensor
  5. Active buzzer
  6. Momentary switches
  7. Two 220 ohm and one 10K ohm resistor
  8. Female to female jumper wires, normal wires
  9. 5v charger
  10. MDF board, paint, drill machine, screws, glue gun etc

Implementation

We will design our circuit based on below diagram. Momentary switches use 220ohm resistors and DHT sensor uses 10K ohm resistor.

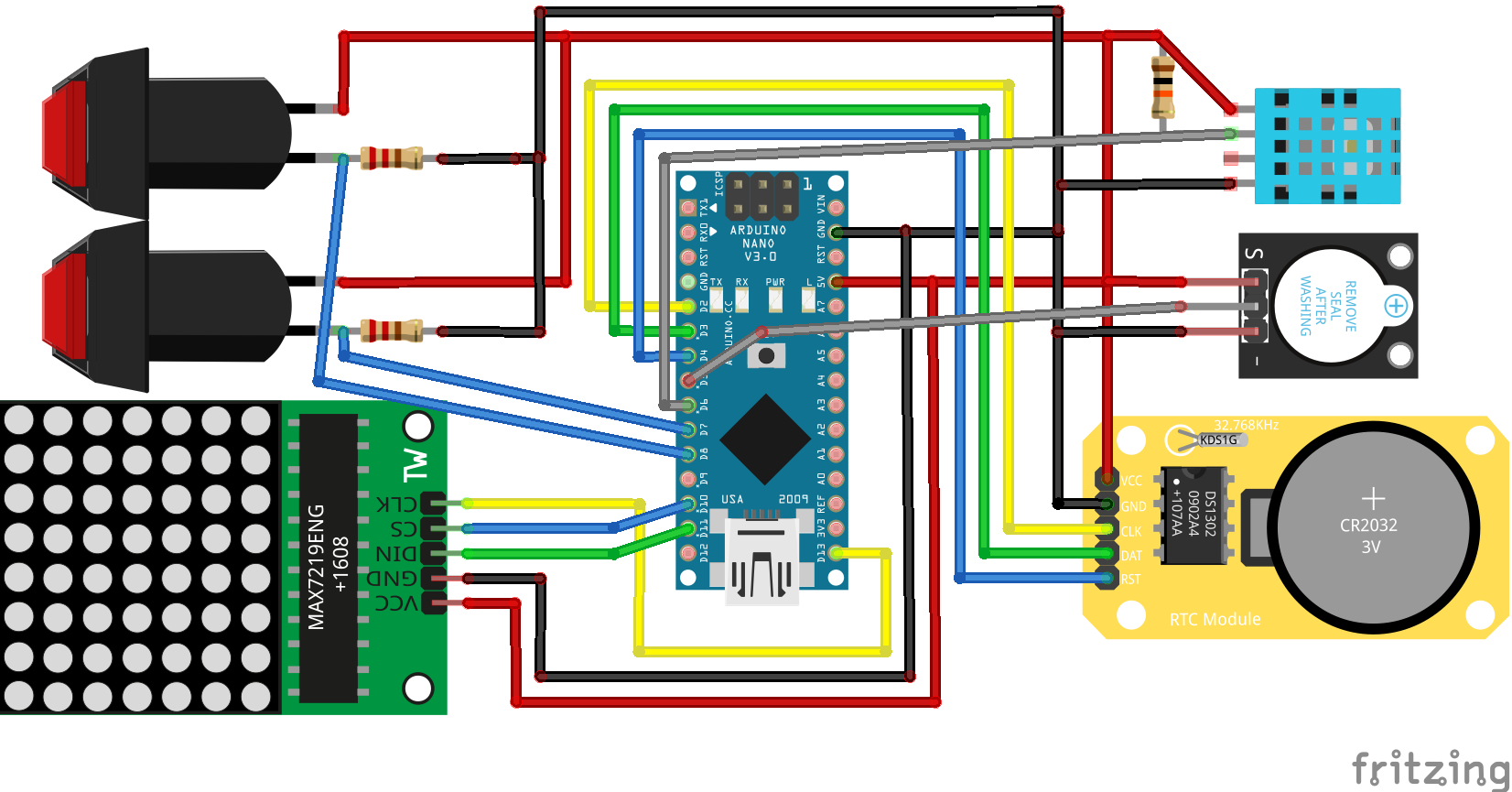

Digital clock Circuit diagram with Arduino nano, RTC, DHT, MAX7219, Buzzer
Fig 1: Digital clock Circuit diagram


Two momentary switches are "back" and "select". On press back clock can display day, temperature, humidity etc. Select button works as menu which supports momentary press and long press. Momentary press is used to display menu items and long press is used to get into menu item also to save and exit.

If you want to change time, click on select button(button-2 in video) keep clicking until you see option "Time". Once time is displayed press and hold same button, you will be able to get into time setting mode. Click back(Button-1 in video) to change between hours and minutes, press select button to change time and again log press to save and exit.

Full video of making this clock:

Below is the code will be uploading to Arduino:

#include <MD_Parola.h>
#include <MD_MAX72xx.h>
#include <SPI.h>
#include "Font_Data.h"
#include <virtuabotixRTC.h>
#include "DHT.h"
#include <EEPROM.h>

//Display
#define HARDWARE_TYPE MD_MAX72XX::FC16_HW
#define MAX_DEVICES 4
#define DISPLAY_CLK_PIN   13
#define DISPLAY_DATA_PIN  11
#define DISPLAY_CS_PIN    10
//RTC
#define RTC_CLK_PIN  2
#define RTC_DATA_PIN  3
#define RTC_RST_PIN   4
//DHT
#define DHT_PIN 6
#define DHTTYPE DHT11

// Hardware SPI connection
MD_Parola P = MD_Parola(HARDWARE_TYPE, DISPLAY_CS_PIN, MAX_DEVICES);
//RTC
virtuabotixRTC myRTC(RTC_CLK_PIN,RTC_DATA_PIN,RTC_RST_PIN);
//DHT
DHT dht(DHT_PIN, DHTTYPE);

//OTHER PINS
#define BTN_BACK_PIN 8
#define BTN_SELECT_PIN 7
#define ALARM_PIN   5

char Buffer[7];

int SELECT = 0;
int SUBSELECT = 0;
int BACK = 0;
int OPTION = 0;
int RING = 0;
int ALARMHOUR = 6;
int ALARMMINUTE = 30;
int ALARMON = 0;
int ALARMOFFONBUTTONPRESS = 0;
int ROMALARMHOURADD = 0;
int ROMALARMMINUTEADD = 2;
int ROMALARMONADD = 4;

void setup(void)
{
  P.begin();
  dht.begin();
  Serial.begin(9600);
  P.setFont(newFont);
  P.setIntensity(1);

  pinMode(ALARM_PIN, OUTPUT);
  pinMode(BTN_BACK_PIN, INPUT);
  pinMode(BTN_SELECT_PIN, INPUT);

  ALARMHOUR=EEPROM.read(ROMALARMHOURADD);
  ALARMMINUTE=EEPROM.read(ROMALARMMINUTEADD);
  ALARMON=EEPROM.read(ROMALARMONADD);
  if(ALARMHOUR > 23) ALARMHOUR = 6;
  if(ALARMMINUTE > 59) ALARMHOUR = 30;
  if(ALARMON > 1) ALARMON = 0;
}

void loop(void)
{
  int alarmMinDiff = (myRTC.hours*60 + myRTC.minutes) - (ALARMHOUR*60 + ALARMMINUTE);
  //Ring if time is alarm time, alarm is on, user did not press any button and user is not inside menu
  if(alarmMinDiff == 0 && ALARMON == 1 && ALARMOFFONBUTTONPRESS == 0 && SELECT == 0)
  {
    ringAlarm();
  }
  else
  {
    digitalWrite(ALARM_PIN, LOW);
  }
  if(alarmMinDiff != 0)
  {
    ALARMOFFONBUTTONPRESS = 0;
  }

  int longPress = 0;
  if(digitalRead(BTN_BACK_PIN)==HIGH)
  {
    if(tryStopAlarm(alarmMinDiff) == 0)
      clickedBack();
  }

  while(digitalRead(BTN_SELECT_PIN)==HIGH)
  {
    longPress += 100;
    delay(100);
    if(longPress > 1500 || digitalRead(BTN_SELECT_PIN)==LOW)
      break;

    continue;
  }

  if(longPress > 0)
  {
    if(tryStopAlarm(alarmMinDiff) == 0)
    {
      if(SELECT > 0 && longPress > 1500)
      {
        clickedLongSelect();
      }
      else if(longPress > 0)
      {
        clickedSelect();
      }
    }
  }

  P.displayAnimate();

  while(digitalRead(BTN_BACK_PIN)==HIGH)
    delay(100);
  while(digitalRead(BTN_SELECT_PIN)==HIGH)
    delay(100);

  if(BACK == 0 && SELECT == 0)
  {
    displayTime();
  }

  delay(100);
}

void ringAlarm()
{
  if(RING == 0)
  {
    digitalWrite(ALARM_PIN, HIGH);
    RING = 1;
  }
  else
  {
    digitalWrite(ALARM_PIN, LOW);
    RING = 0;
  }
}

int tryStopAlarm(int alarmMinDiff)
{
  if(alarmMinDiff == 0 && ALARMON == 1 && ALARMOFFONBUTTONPRESS == 0)
  {
      ALARMOFFONBUTTONPRESS = 1;
      digitalWrite(ALARM_PIN, LOW);
      return 1;
  }
  return 0;
}
//---------------------------------Button click methods--------------------------------------//
void clickedBack()
{
  BACK++;
  if(SELECT == 0)
  {
    switch(BACK)
    {
      case 1:
        {
          displayDay();
          break;
        }
      case 2:
        {
          displayDate();
          break;
        }
      case 3:
        {
          displayTemparature();
          break;
        }
      case 4:
        {
          displayHumidity();
          break;
        }
      default:
        {
          BACK = 0;
          break;
        }
    }
  }
  else if(SELECT > 0)
  {
    switch(SUBSELECT)
    {
      case 1:
      {
        updateTime();
        break;
      }
      case 2:
      {
        updateDate();
        break;
      }
      case 3:
      {
        updateDay();
        break;
      }
      case 4:
      {
        updateAlarm();
        break;
      }
      case 5:
      {
        updateOnOffAlarm();
        break;
      }
      default:
      {
        reset();
      }
    }
  }
}

void clickedSelect()
{
  SELECT++;
  if(SUBSELECT == 0)
  {
    switch(SELECT)
    {
      case 1:
        {
          P.displayText("Time", PA_CENTER, 0, 0, PA_PRINT, PA_NO_EFFECT);
          break;
        }
      case 2:
        {
          P.displayText("Date", PA_CENTER, 0, 0, PA_PRINT, PA_NO_EFFECT);
          //P.displayText("Set Date", PA_LEFT, 60, 0, PA_SCROLL_LEFT, PA_NO_EFFECT);
          break;
        }
      case 3:
        {
          P.displayText("Day", PA_CENTER, 0, 0, PA_PRINT, PA_NO_EFFECT);
          break;
        }
      case 4:
        {
          P.displayText("Alarm", PA_CENTER, 0, 0, PA_PRINT, PA_NO_EFFECT);
          break;
        }
      case 5:
        {
          P.displayClear();
          P.displayText("ON/OFF - Alarm", PA_LEFT, 60, 0, PA_SCROLL_LEFT, PA_NO_EFFECT);
          break;
        }
      default:
        {
          SELECT = 0;
        }
    }
  }
  else
  {
    switch(SUBSELECT)
    {
      case 1:
      {
        if(OPTION == 0) OPTION++; else OPTION=0;
        displayOptionTime();
        break;
      }
      case 2:
      {
        if(OPTION < 2) OPTION++; else OPTION=0;
        displayOptionDate();
        break;
      }
      case 3:
      {
        displayOptionDay();
        break;
      }
      case 4:
      {
        if(OPTION == 0) OPTION++; else OPTION=0;
        displayOptionAlarm();
        break;
      }
      case 5:
      {
        displayOptionOnOffAlarm();
        break;
      }
      default:
      {
        SELECT = 0;
      }
    }
  }
}

void clickedLongSelect()
{
  if(SELECT > 0 && SUBSELECT > 0)
  {
    reset();
    displayTime();
  }
  if(SELECT > 0)
  {
    SUBSELECT = SELECT;
    switch(SELECT)
    {
      case 1:
        {
          displayOptionTime();
          break;
        }
      case 2:
        {
          displayOptionDate();
          break;
        }
      case 3:
        {
          displayOptionDay();
          break;
        }
      case 4:
        {
          displayOptionAlarm();
          break;
        }
      case 5:
        {
          displayOptionOnOffAlarm();
          break;
        }
    }
  }
}
//---------------------------------Update Date Time--------------------------------------//
void updateTime()
{
  if(OPTION == 0)
  {
    int hours = myRTC.hours < 23 ? myRTC.hours + 1 : 0;
    myRTC.setDS1302Time(00, myRTC.minutes, hours, myRTC.dayofweek, myRTC.dayofmonth, myRTC.month, myRTC.year);
  }
  else
  {
    int minutes = myRTC.minutes < 59 ? myRTC.minutes + 1 : 0;
    myRTC.setDS1302Time(00, minutes, myRTC.hours, myRTC.dayofweek, myRTC.dayofmonth, myRTC.month, myRTC.year);
  }
  myRTC.updateTime();
  displayOptionTime();
}

void updateDate()
{
  if(OPTION == 0)
  {
    int dayofmonth = myRTC.dayofmonth < 31 ? myRTC.dayofmonth + 1 : 1;
    myRTC.setDS1302Time(00, myRTC.minutes, myRTC.hours, myRTC.dayofweek, dayofmonth, myRTC.month, myRTC.year);
  }
  else if(OPTION == 1)
  {
    int month = myRTC.month < 12 ? myRTC.month + 1 : 1;
    myRTC.setDS1302Time(00, myRTC.minutes, myRTC.hours, myRTC.dayofweek, myRTC.dayofmonth, month, myRTC.year);
  }
  else if (OPTION == 2)
  {
    int year = myRTC.year < 2050 ? myRTC.year + 1 : 2020;
    myRTC.setDS1302Time(00, myRTC.minutes, myRTC.hours, myRTC.dayofweek, myRTC.dayofmonth, myRTC.month, year);
  }
  myRTC.updateTime();
  displayOptionDate();
}
void updateDay()
{
  int dayofweek = myRTC.dayofweek < 7 ? myRTC.dayofweek + 1 : 1;
  myRTC.setDS1302Time(00, myRTC.minutes, myRTC.hours, dayofweek, myRTC.dayofmonth, myRTC.month, myRTC.year);
  myRTC.updateTime();
  displayOptionDay();
}
void updateAlarm()
{
  if(OPTION == 0)
  {
    ALARMHOUR = ALARMHOUR < 23 ? ALARMHOUR + 1 : 0;
    EEPROM.write(ROMALARMHOURADD, ALARMHOUR);
  }
  else
  {
    ALARMMINUTE = ALARMMINUTE < 59 ? ALARMMINUTE + 1 : 0;
    EEPROM.write(ROMALARMMINUTEADD, ALARMMINUTE);
  }
  displayOptionAlarm();
}
void updateOnOffAlarm()
{
  if(ALARMON == 0) ALARMON++; else ALARMON = 0;
  EEPROM.write(ROMALARMONADD, ALARMON);
  displayOptionOnOffAlarm();
}
//---------------------------------Display methods--------------------------------------//
void displayTime()
{
  myRTC.updateTime();
  int hours = myRTC.hours > 12 ? myRTC.hours - 12 : myRTC.hours == 0 ? 12 : myRTC.hours;
  sprintf(Buffer,"%02d : %02d",hours,myRTC.minutes);
  P.displayText(Buffer, PA_CENTER, 0, 0, PA_PRINT, PA_NO_EFFECT);
}

void displayTemparature()
{
  int tempC = dht.readTemperature();
  sprintf(Buffer,"%02d ºC", tempC);
  P.displayText(Buffer, PA_CENTER, 0, 0, PA_PRINT, PA_NO_EFFECT);
}

void displayHumidity()
{
  int humi  = dht.readHumidity();
  sprintf(Buffer,"%02d %%", humi);
  P.displayText(Buffer, PA_CENTER, 0, 0, PA_PRINT, PA_NO_EFFECT);
}

void displayDay()
{
  myRTC.updateTime();
  char* dayPtr = getDay(myRTC.dayofweek);
  P.displayText(dayPtr, PA_CENTER, 0, 0, PA_PRINT, PA_NO_EFFECT);
}

void displayDate()
{
  myRTC.updateTime();
  char* monthPtr = getMonth(myRTC.month);
  sprintf(Buffer,"%s %02d", monthPtr, myRTC.dayofmonth);
  P.displayText(Buffer, PA_CENTER, 0, 0, PA_PRINT, PA_NO_EFFECT);
}

void displayOptionTime()
{
  if(OPTION == 0)
    sprintf(Buffer,">%02d:%02d",myRTC.hours,myRTC.minutes);
  else
    sprintf(Buffer,"%02d:>%02d",myRTC.hours,myRTC.minutes);

  P.displayText(Buffer, PA_CENTER, 0, 0, PA_PRINT, PA_NO_EFFECT);
}

void displayOptionDate()
{
  if(OPTION == 0)
    sprintf(Buffer,"D>%02d",myRTC.dayofmonth);
  else if(OPTION == 1)
    sprintf(Buffer,"M>%02d",myRTC.month);
  else
    sprintf(Buffer,"Y>%02d",myRTC.year);

  P.displayText(Buffer, PA_CENTER, 0, 0, PA_PRINT, PA_NO_EFFECT);
}
void displayOptionDay()
{
  char* dayName = getDay(myRTC.dayofweek);
  sprintf(Buffer,"D>%0s",dayName);
  P.displayText(Buffer, PA_CENTER, 0, 0, PA_PRINT, PA_NO_EFFECT);
}
void displayOptionAlarm()
{
  if(OPTION == 0)
    sprintf(Buffer,">%02d:%02d",ALARMHOUR,ALARMMINUTE);
  else
    sprintf(Buffer,"%02d:>%02d",ALARMHOUR,ALARMMINUTE);

  P.displayText(Buffer, PA_CENTER, 0, 0, PA_PRINT, PA_NO_EFFECT);
}
void displayOptionOnOffAlarm()
{
  if(ALARMON == 0)
    P.displayText("> OFF", PA_CENTER, 0, 0, PA_PRINT, PA_NO_EFFECT);
  else
    P.displayText("> ON", PA_CENTER, 0, 0, PA_PRINT, PA_NO_EFFECT);
}
//-------------------------------Day/month int to string methods----------------------------------//
char* getDay(int dayofweek)
{
  switch(dayofweek)
  {
    case 1:
      return "MON";
    case 2:
      return "TUE";
    case 3:
      return "WED";
    case 4:
      return "THU";
    case 5:
      return "FRI";
    case 6:
      return "SAT";
    case 7:
      return "SUN";
  }
}

char* getMonth(int monthNo)
{
  switch(monthNo)
  {
    case 1:
      return "JAN";
    case 2:
      return "FEB";
    case 3:
      return "MAR";
    case 4:
      return "APR";
    case 5:
      return "MAY";
    case 6:
      return "JUN";
    case 7:
      return "JUL";
    case 8:
      return "AUG";
    case 9:
      return "SEP";
    case 10:
      return "OCT";
    case 11:
      return "NOV";
    case 12:
      return "DEC";
  }
}

void reset()
{
  SELECT = 0;
  BACK = 0;
  SUBSELECT = 0;
  OPTION = 0;
}



Font_Data.h file also to be added to Arduino code:

// Data file for user example user defined fonts
#ifndef FONTDATA_H
#define FONTDATA_H

MD_MAX72XX::fontType_t newFont[] PROGMEM =
{
  0,  // 0
  0,  // 1
  0,  // 2
  0,  // 3
  0,  // 4
  0,  // 5
  0,  // 6
  0,  // 7
  0,  // 8
  0,  // 9
  0,  // 10
  0,  // 11
  0,  // 12
  0,  // 13
  0,  // 14
  0,  // 15
  0,  // 16
  0,  // 17
  0,  // 18
  0,  // 19
  0,  // 20
  0,  // 21
  0,  // 22
  0,  // 23
  0,  // 24
  0,  // 25
  0,  // 26
  0,  // 27
  0,  // 28
  0,  // 29
  0,  // 30
  0,  // 31
  1, 0,   // 32
  0,  // 33
  0,  // 34
  0,  // 35
  0,  // 36
  5, 152, 88, 32, 208, 200,   // 37
  0,  // 38
  0,  // 39
  0,  // 40
  0,  // 41
  0,  // 42
  0,  // 43
  0,  // 44
  0,  // 45
  0,  // 46
  5, 64, 32, 16, 8, 4,  // 47
  5, 124, 162, 146, 138, 124,   // 48
  5, 136, 132, 254, 128, 128,   // 49
  5, 132, 194, 162, 146, 140,   // 50
  5, 68, 146, 146, 146, 108,  // 51
  5, 48, 40, 36, 254, 32,   // 52
  5, 78, 138, 138, 138, 114,  // 53
  5, 124, 146, 146, 146, 100,   // 54
  5, 2, 226, 18, 10, 6,   // 55
  5, 108, 146, 146, 146, 108,   // 56
  5, 76, 146, 146, 146, 124,  // 57
  1, 40,  // 58
  0,  // 59
  0,  // 60
  0,  // 61
  3, 68, 40, 16,   // 62
  0,  // 63
  0,  // 64
  5, 252, 18, 18, 18, 252,  // 65
  5, 254, 146, 146, 146, 108,   // 66
  5, 124, 130, 130, 130, 68,  // 67
  5, 254, 130, 130, 130, 124,   // 68
  5, 254, 146, 146, 146, 130,   // 69
  5, 254, 18, 18, 18, 2,  // 70
  5, 124, 130, 130, 162, 100,   // 71
  5, 254, 16, 16, 16, 254,  // 72
  3, 130, 254, 130,   // 73
  5, 64, 130, 130, 130, 126,  // 74
  5, 254, 16, 16, 40, 198,  // 75
  5, 254, 128, 128, 128, 128,   // 76
  5, 254, 4, 8, 4, 254,   // 77
  5, 254, 8, 16, 32, 254,   // 78
  5, 124, 130, 130, 130, 124,   // 79
  5, 254, 18, 18, 18, 12,   // 80
  5, 124, 130, 162, 194, 252,   // 81
  5, 254, 18, 18, 18, 236,  // 82
  5, 76, 146, 146, 146, 100,  // 83
  5, 2, 2, 254, 2, 2,   // 84
  5, 126, 128, 128, 128, 126,   // 85
  5, 62, 64, 128, 64, 62,   // 86
  5, 254, 64, 32, 64, 254,  // 87
  5, 198, 40, 16, 40, 198,  // 88
  5, 6, 8, 240, 8, 6,   // 89
  5, 194, 162, 146, 138, 134,   // 90
  8, 0, 0, 0, 0, 0, 0, 0, 0,  // 91
  0,  // 92
  0,  // 93
  0,  // 94
  0,  // 95
  0,  // 96
  5, 64, 168, 168, 168, 248,  // 97
  5, 254, 144, 136, 136, 112,   // 98
  5, 112, 136, 136, 136, 64,  // 99
  5, 112, 136, 136, 144, 254,   // 100
  5, 112, 168, 168, 168, 48,  // 101
  4, 16, 252, 18, 2,  // 102
  5, 16, 168, 168, 168, 120,  // 103
  5, 254, 16, 8, 8, 240,  // 104
  3, 136, 250, 128,   // 105
  3, 128, 136, 122,   // 106
  4, 254, 32, 80, 136,  // 107
  3, 130, 254, 128,   // 108
  5, 248, 8, 240, 8, 240,   // 109
  5, 248, 8, 8, 8, 240,   // 110
  5, 112, 136, 136, 136, 112,   // 111
  5, 248, 40, 40, 40, 16,   // 112
  5, 16, 40, 40, 40, 248,   // 113
  5, 248, 16, 8, 8, 16,   // 114
  5, 144, 168, 168, 168, 72,  // 115
  5, 4, 254, 132, 128, 64,  // 116
  5, 120, 128, 128, 128, 248,   // 117
  5, 24, 96, 128, 96, 24,   // 118
  5, 120, 128, 96, 128, 120,  // 119
  5, 136, 72, 112, 144, 136,  // 120
  5, 136, 144, 96, 32, 24,  // 121
  5, 136, 200, 168, 152, 136,   // 122
  0,  // 123
  0,  // 124
  0,  // 125
  0,  // 126
  0,  // 127
  0,  // 128
  0,  // 129
  0,  // 130
  0,  // 131
  0,  // 132
  0,  // 133
  0,  // 134
  0,  // 135
  0,  // 136
  0,  // 137
  0,  // 138
  0,  // 139
  0,  // 140
  0,  // 141
  0,  // 142
  0,  // 143
  0,  // 144
  0,  // 145
  0,  // 146
  0,  // 147
  0,  // 148
  0,  // 149
  0,  // 150
  0,  // 151
  0,  // 152
  0,  // 153
  0,  // 154
  0,  // 155
  0,  // 156
  0,  // 157
  0,  // 158
  0,  // 159
  0,  // 160
  0,  // 161
  0,  // 162
  0,  // 163
  0,  // 164
  0,  // 165
  0,  // 166
  0,  // 167
  0,  // 168
  0,  // 169
  0,  // 170
  0,  // 171
  0,  // 172
  0,  // 173
  0,  // 174
  0,  // 175
  0,  // 176
  0,  // 177
  0,  // 178
  0,  // 179
  0,  // 180
  0,  // 181
  0,  // 182
  0,  // 183
  0,  // 184
  0,  // 185
  4, 12, 18, 18, 12,  // 186
  0,  // 187
  0,  // 188
  0,  // 189
  0,  // 190
  0,  // 191
  0,  // 192
  0,  // 193
  0,  // 194
  0,  // 195
  0,  // 196
  0,  // 197
  0,  // 198
  0,  // 199
  0,  // 200
  0,  // 201
  0,  // 202
  0,  // 203
  0,  // 204
  0,  // 205
  0,  // 206
  0,  // 207
  0,  // 208
  0,  // 209
  0,  // 210
  0,  // 211
  0,  // 212
  0,  // 213
  0,  // 214
  0,  // 215
  0,  // 216
  0,  // 217
  0,  // 218
  0,  // 219
  0,  // 220
  0,  // 221
  0,  // 222
  0,  // 223
  0,  // 224
  0,  // 225
  0,  // 226
  0,  // 227
  0,  // 228
  0,  // 229
  0,  // 230
  0,  // 231
  0,  // 232
  0,  // 233
  0,  // 234
  0,  // 235
  0,  // 236
  0,  // 237
  0,  // 238
  0,  // 239
  0,  // 240
  0,  // 241
  0,  // 242
  0,  // 243
  0,  // 244
  0,  // 245
  0,  // 246
  0,  // 247
  0,  // 248
  0,  // 249
  0,  // 250
  0,  // 251
  0,  // 252
  0,  // 253
  0,  // 254
  0,  // 255
};
#endif




Like 1 Person
Last modified on 6 May 2022
Nikhil Joshi

Nikhil Joshi
Ceo & Founder at Dotnetlovers
Atricles: 164
Questions: 16
Given Best Solutions: 16 *

Comments:

Weka Man
Weka Man

Hi great clock, just breadboarded it and might make it an actual for my workshop but with a 16x64 matrix. Not much of a coder and have been trying to make it change back to time after a minute on the other options and scroll through time, date, temp and humidity as an option. Also would like 24 hour time. Any ideas on how to change my code to suit?

Like 1 Person on 28 February 2021
Nikhil Joshi
Nikhil Joshi

Thanks Weka, Could not get you question 1 but for changing it to 24hours clock you change where I'm displaying time:

void displayTime()
{
  myRTC.updateTime();
  int hours = myRTC.hours > 12 ? myRTC.hours - 12 : myRTC.hours == 0 ? 12 : myRTC.hours;
  sprintf(Buffer,"%02d : %02d",hours,myRTC.minutes);
  P.displayText(Buffer, PA_CENTER, 0, 0, PA_PRINT, PA_NO_EFFECT);
}

Just remove calculation of hours and display as it is:

void displayTime()
{
  myRTC.updateTime();
  sprintf(Buffer,"%02d : %02d",myRTC.hours,myRTC.minutes);
  P.displayText(Buffer, PA_CENTER, 0, 0, PA_PRINT, PA_NO_EFFECT);
}

You may have to make this change at couple of places.
With breadboard setup will become more cleaner and less messy. Good luck with clock, let me also know once you complete it.

Like 0 People on 28 February 2021
Weka Man
Weka Man

Thanks. Only had to change the code there. Looks like Ill have to get a nano to shrink the form factor as my pro minis' havent got enough power to handle the matrix, temp sensor, RTC and buzzer at once

Like 1 Person on 1 March 2021
Hugo Hugão
Hugo Hugão

Thanks thank you, i managed to do everything here very well. But I wanted to change the resolution to 16x64 and if possible change it to message and clock message clock thank you

Like 1 Person on 15 September 2021
Nikhil Joshi
Nikhil Joshi

Thanks Hugo,

You can buy 16*64 device and connect(I think you just need to change MAX_DEVICES variable value to 16) but check if that requires additional power supply, Arduino might not be able supply required current.

Like 1 Person on 18 September 2021
Saadi Bhatti
Saadi Bhatti

Error compiling for board Arduino Nano any solution

Like 0 People on 25 December 2021
Nikhil Joshi
Nikhil Joshi

Hi Saadi,

All the files are available to download in zip, may I know what is the error you are facing?

Like 0 People on 26 December 2021
Phone Myint
Phone Myint

Hi Sir,

I have been trying this clock project and it works well except the clock's  buzzer is always make a sound even I turn it off(I mean that I turn the Alarm to "OFF" position.but every time when I connect the power cord to the clock(Arduino board),the buzzer always make sound(not beeping sound but constant non-stop sound).

Could you help me with that error.Please.

Like 0 People on 20 March 2022
Nikhil Joshi
Nikhil Joshi

Hi Phone,
Most probably you would have connected buzzer to some wrong pin, I have buzzer with 3 pins. Alarm pin in my code is D5. Rest pins you have to connect to GND and VCC.

If your buzzer has only 2 pins then you connect Negative to GND and Positive to pin 5.

Like 1 Person on 21 March 2022
Phone Myint
Phone Myint

Thank you for your answer Sir.I made it now.

Like 0 People on 10 April 2022
Phone Myint
Phone Myint

Can I ask another one question Sir,

How can I make the two dots ":" between Hour and minutes blinking.I mean ,for example, the clock display like this  12:25 twelve hour and twenty five minutes.So ,how can I make the two dots between 12 and 25 blinking.Could you help me with that Sir,Please.

Like 0 People on 10 April 2022
JAGANNATH KULKARNI
JAGANNATH KULKARNI

Can I use DS1307 clock module instead of DS1302 ? (If I want to use just clock part of the code and not the temperature and humidity sensor)

Like 0 People on 28 April 2022
Nikhil Joshi
Nikhil Joshi

Hi Jagannath,
Not sure if library virtuabotixRTC would work with DS1307. You might have to change the code wherever this library methods are used.

Like 0 People on 28 April 2022
ahoj420
ahoj420

Hi mate, i just have one problem. When i unplug the clock and plug it again, it will rewrite my set up day, date and time back to 24 : 00, MON, JAN 1. Can you please help me?

Like 0 People on 30 September 2022

You are not loggedin, please login or signup to add comments:

Existing User

Resend Confirmation Email ?
Forgot Password ?
Login via:

New User



x
